PRODUCT Product Details

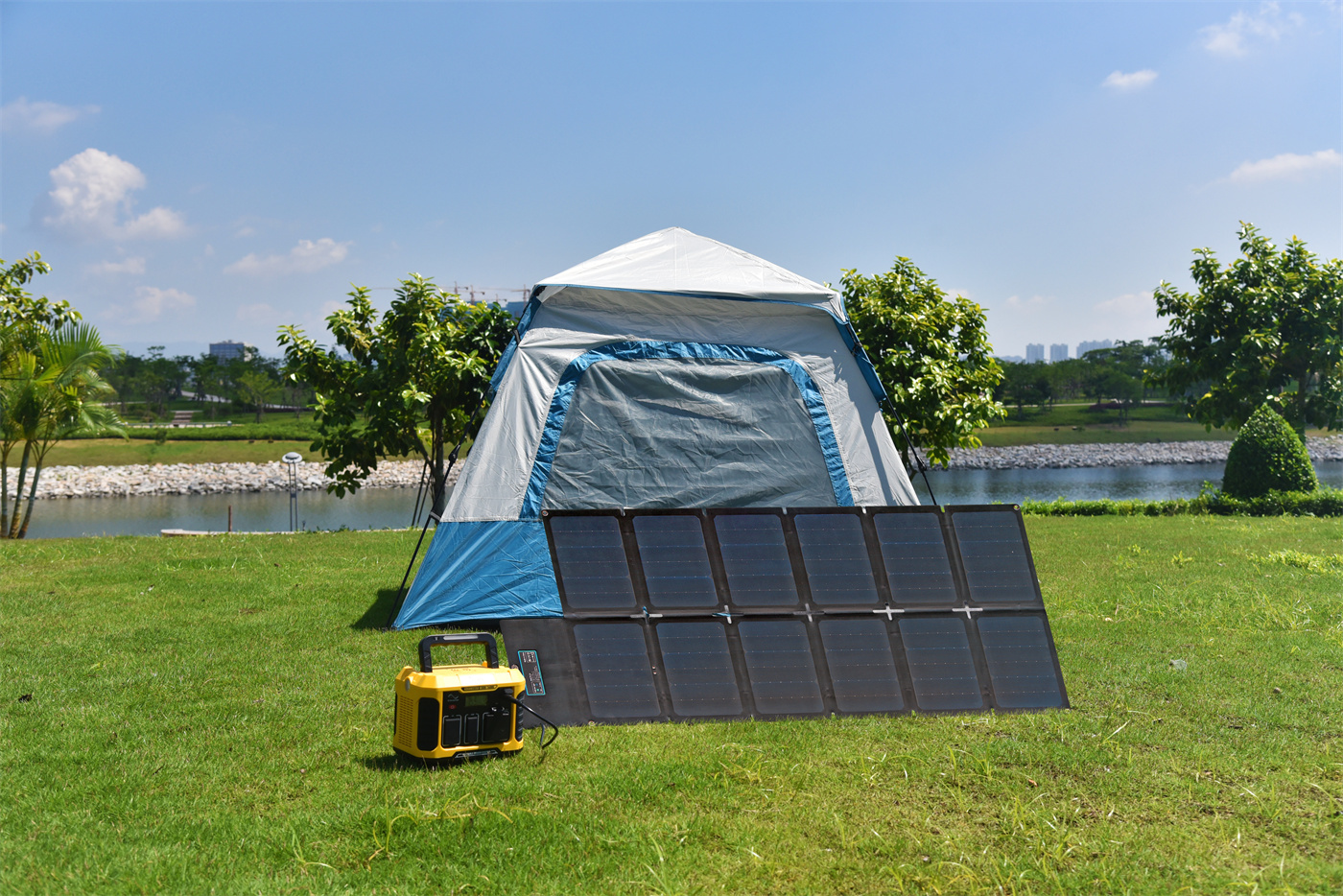

Portable charging folding bag 2FMC00447
Portable power supply design: DC 19V voltage output to charge portable power supply USB smart charging technology: USB interface QC3.0 and Type C (5V/9V/12v 2A max), suitable for smart phones and tablets. Meet outdoor living use. Built-in intelligent IC chip, intelligent identification equipment, and maximum catch for fast charging, to prevent overcharge and overload. High conversion efficiency: High-efficiency monocrystalline silicon solar cells, even if the panel is smaller than traditional models, can obtain greater efficiency, reduce losses, and maximize system output. Durable: The solar panel is made of advanced lamination technology and durable ETFE material, which can be used for more than 15 years.
Keywords
solar charge portable unit
portable solar power for household
super charge portable solar panel
solar battery pack portable charger
Classification
- Product Features
- Technical parameters
-
Portable power supply design: DC 19V voltage output to charge portable power supply
USB smart charging technology: USB interface QC3.0 and Type C (5V/9V/12v 2A max), suitable for smart phones and tablets. Meet outdoor living use. Built-in intelligent IC chip, intelligent identification equipment, and maximum catch for fast charging, to prevent overcharge and overload.
High conversion efficiency: High-efficiency monocrystalline silicon solar cells, even if the panel is smaller than the traditional model, can obtain greater efficiency, reduce losses, and maximize system output.
Durable: solar panel is made of advanced lamination technology and durable ETFE material, which can be used for more than 15 years.
Application
-
Maximum Power: 100W Solar Chip: High Efficiency Monocrystalline Silicon Battery Power Tolerance: Soil 3% Peak Voltage (Vmp): 22.3V Peak current (Imp): 4.1A Open circuit voltage (Voc): 25.9V Short circuit current (lsc): 4.3A Chip efficiency: 0.22 Size: (mm) 1320 × 570mm (unfolded) 1285 × 200 × 70mm (folded) Weight: kg) 3KG
Note: the above solar charging time is subject to the standard test strip (irradiance 1000 W/m,AM1.5, 25 ℃)
Remarks: Above charging time are subject to the standard test conditions.(STC light Intensity 1000 W/m,AM1.5, 25 ℃)
