PRODUCT Product Details

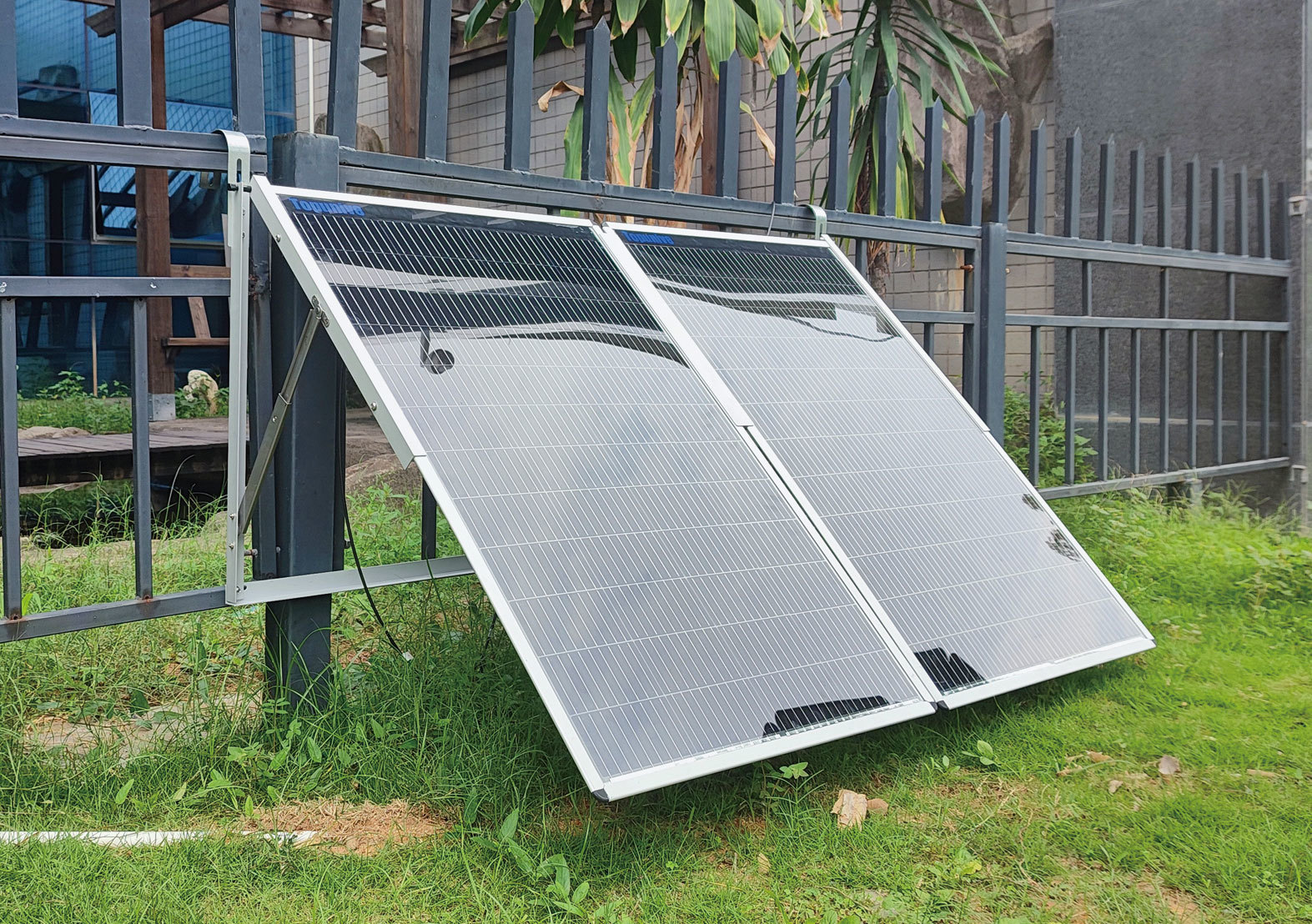

Balcony micro-inverter solar power supply system
This product is a solar photovoltaic system for off-grid households, which can provide power for families, hotels, small clubs, high-rise apartments, etc.
Keywords
Emergency Battery Backup
Portable solar power for household
Solar charge portable unit
Super charge portable solar panel
Classification
- Product Features
- Technical parameters
-
This product is a solar photovoltaic system for off-grid households, which can provide power for families, hotels, small clubs, high-rise apartments, etc.
Product Advantage
System adopts modular design. Users can select corresponding modules (including solar panel modules and energy storage unit modules) according to usage requirements to facilitate user expansion (DIY) ;
Multiple systems are connected in parallel and are independent of each other. When some solar micro-inverter components fail, the system operation will not be affected.
Mains power output adopts bus form and universal plug, which is convenient for users to install and use; users can complete the installation of the entire system by themselves without the help of professionals.
Application
-
solar bracket assembly
single photovoltaic panel electrical parameters
output open circuit voltage value:
32.6v 10% short circuit current:
5.48A ± 10% Output Peak Voltage:
27.8V ± 10% Output Peak Current:
5.25A ± 10% Output Peak Power:
145w 5% 4 photovoltaic panels all parallel electrical parameters
output open circuit voltage value:
32.6v 10% short circuit current:
10.96A 10% * 2 groups output peak voltage:
27.8V 10% output peak current:
10.5A 10% * 2 groups output peak power:
580W 5% PV module size weight
folding size:
≤ 1130*1505 * 40mm
unfolding size:
≤ 1130*776.5 * 850mm weight: ≤ 14kg
≤ 14kg
microgrid inverter
output peak power:
600W;
rated output power:
580W;
rated output current:
2.6a.
